shooting

<!DOCTYPE html>
<html>
<head>
  <meta charset="utf-8">
  <meta name="viewport" content="width=device-width, initial-scale=1">
  <script type="importmap">
    {
      "imports": {
        "pixi.js": "https://cdnjs.cloudflare.com/ajax/libs/pixi.js/8.6.6/pixi.min.mjs",
        "@mulsense/xnew": "https://unpkg.com/@mulsense/xnew@0.2.x/dist/xnew.mjs",
        "@mulsense/xnew/addons/xpixi": "https://unpkg.com/@mulsense/xnew@0.2.x/dist/addons/xpixi.mjs"
      }
    }
  </script>
  <script type="module" src="./script.js"></script>
  <script src="https://cdn.jsdelivr.net/npm/@tailwindcss/browser@4"></script>
</head>

<body style="margin: 0; height: 100vh;">
  <div id="main" style="width: 100%; height: 100%;"></div>
</body>

</html>

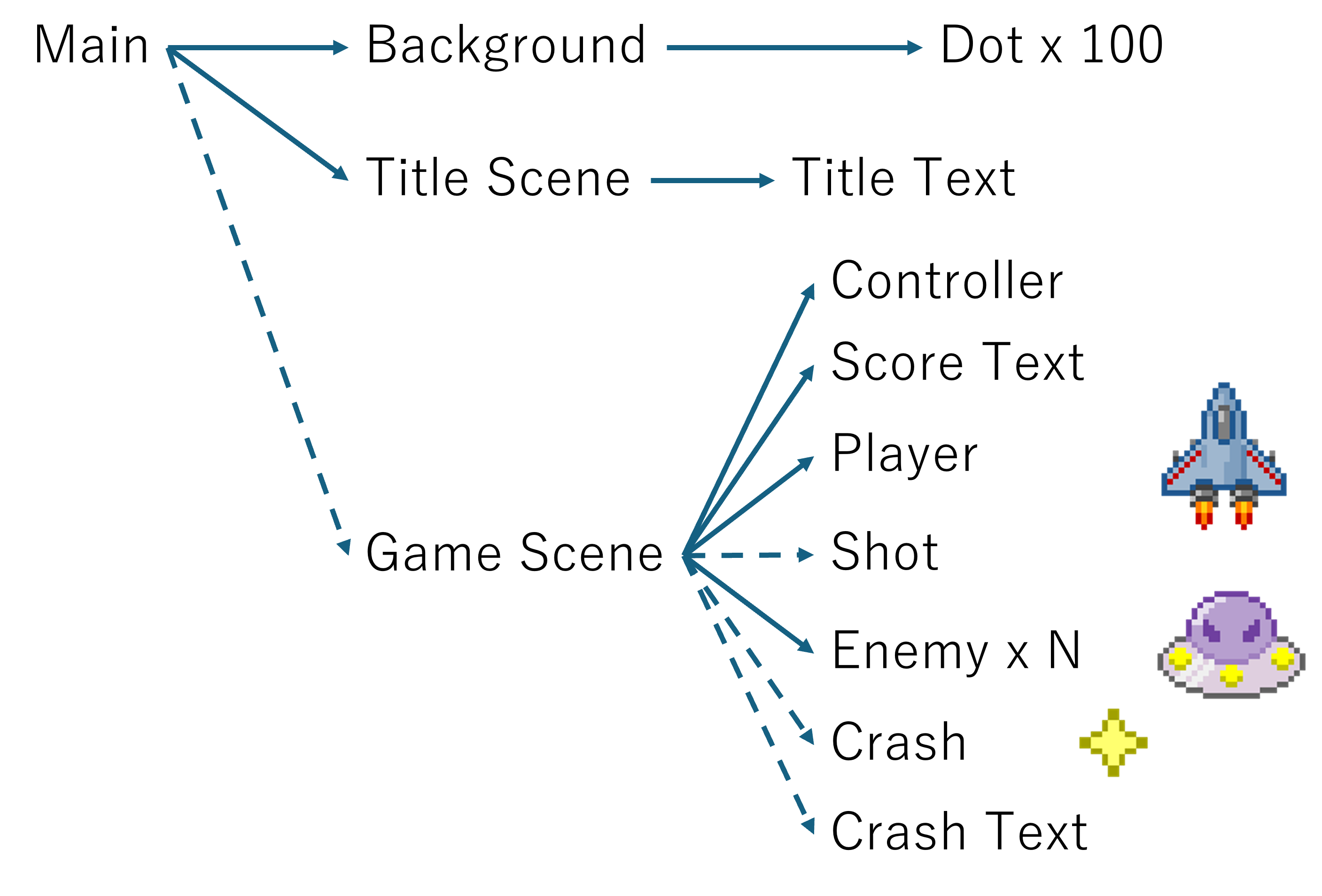

component tree​

script.js
import * as PIXI from 'pixi.js';
import xnew from '@mulsense/xnew';
import xpixi from '@mulsense/xnew/addons/xpixi';

xnew('#main', Main);

function Main(main) {
  xnew.extend(xnew.basics.Screen, { width: 800, height: 600 });

  // setup pixi
  xpixi.initialize({ canvas: main.canvas });

  xnew(Background);
  let scene = xnew(TitleScene);
  main.on('+main:nextscene', (NextScene, props) => {
    scene.finalize();
    scene = xnew(NextScene, props);
  });
}

function Background(unit) {
  const object = xpixi.nest(new PIXI.Container());
  object.addChild(new PIXI.Graphics().rect(0, 0, xpixi.canvas.width, xpixi.canvas.height).fill(0x000000));

  for (let i = 0; i < 100; i++) {
    xnew(Dot);
  }
}

function Dot(unit) {
  const object = xpixi.nest(new PIXI.Container());
  object.position.set(Math.random() * xpixi.canvas.width, Math.random() * xpixi.canvas.height);
  object.addChild(new PIXI.Graphics().circle(0, 0, 1).fill(0xFFFFFF));

  let velocity = Math.random() + 0.1;
  unit.on('-update', () => {
    object.y += velocity;
    if (object.y > xpixi.canvas.height) {
      object.position.set(Math.random() * xpixi.canvas.width, 0);
    }
  });
}

function TitleScene(unit) {
  xnew(TitleText);
  xnew(xnew.basics.KeyboardEvent).on('-keydown', next);
  xnew(xnew.basics.PointerEvent).on('-pointerdown', next);

  function next() {
    unit.emit('+main:nextscene', GameScene);
  }
}

function TitleText(unit) {
  const object = xpixi.nest(new PIXI.Text('touch start', { fontSize: 32, fill: 0xFFFFFF }));
  object.position.set(xpixi.canvas.width / 2, xpixi.canvas.height / 2);
  object.anchor.set(0.5);
}

function GameScene(scene) {
  xnew(Controller);
  xnew(ScoreText);
  xnew(Player);
  const interval = xnew.interval(() => xnew(Enemy), 500);

  scene.on('+gamescene:append', (Component, props) => {
    xnew(Component, props);
  });

  scene.on('+gameover', () => {
    interval.clear();
    xnew(GameOverText);
    xnew.timeout(() => {
      xnew(xnew.basics.KeyboardEvent).on('-keydown', next);
      xnew(xnew.basics.PointerEvent).on('-pointerdown', next);
      function next() {
        scene.emit('+main:nextscene', TitleScene);
      }
    }, 1000);
  });
}

function Controller(unit) {
  // prevent default event
  unit.on('touchstart contextmenu wheel', (event) => event.preventDefault());

  // left bottom
  xnew(() => {
    xnew.nest('<div class="absolute left-0 right-0 bottom-0 w-full h-[30%] pointer-events-none" style="container-type: size;">');
    xnew.nest('<div class="absolute left-0 top-0 bottom-0 w-[100cqh] h-full">');
    // directional pad
    const dpad = xnew('<div class="absolute inset-[5cqh]">', xnew.basics.DirectionalPad, {});
    dpad.on('-down -move -up', ({ vector }) => unit.emit('+move', { vector }));
  });

  const pointer = xnew(xpixi.canvas, xnew.basics.PointerEvent);
  pointer.on('-pointerdown', () => {
      unit.emit('+shot')
  });

  // keyboard
  const keybord = xnew(xnew.basics.KeyboardEvent);
  keybord.on('-keydown:arrow -keyup:arrow', ({ vector }) => unit.emit('+move', { vector }));
  keybord.on('-keydown', ({ code }) => {
    if (code === 'Space') {
      unit.emit('+shot')
    }
  });
}

function ScoreText(unit) {
  const object = xpixi.nest(new PIXI.Text('score 0', { fontSize: 32, fill: 0xFFFFFF }));
  object.position.set(xpixi.canvas.width - 10, 10); // top right
  object.anchor.set(1.0, 0.0);

  let sum = 0;
  unit.on('+scoreup', (score) => object.text = `score ${sum += score}`);
}

function GameOverText(unit) {
  const object = xpixi.nest(new PIXI.Text('game over', { fontSize: 32, fill: 0xFFFFFF }));
  object.position.set(xpixi.canvas.width / 2, xpixi.canvas.height / 2);
  object.anchor.set(0.5);
}

function Player(unit) {
  const object = xpixi.nest(new PIXI.Container());
  object.position.set(xpixi.canvas.width / 2, xpixi.canvas.height / 2);
  xnew(Sprite, { rects: [[0, 0, 32, 32], [32, 0, 32, 32]] });

  // actions
  let velocity = { x: 0, y: 0 };
  unit.on('+move', ({ vector }) => velocity = vector);
  unit.on('+shot', () => unit.emit('+gamescene:append', Shot, { x: object.x, y: object.y }));
  unit.on('+shot', () => unit.sound());

  unit.on('-update', () => {
    object.x += velocity.x * 2;
    object.y += velocity.y * 2;

    // limitation (10 < x < width - 10, 10 < y < height - 10)
    object.x = Math.min(Math.max(object.x, 10), xpixi.canvas.width - 10);
    object.y = Math.min(Math.max(object.y, 10), xpixi.canvas.height - 10);

    // detect collision
    for (const enemy of xnew.find(Enemy)) {
      if (enemy.distance(object) < 30) {
        enemy.clash(1);
        unit.emit('+gameover');
        unit.finalize();
        return;
      }
    }
  });
  return {
    sound() {
      const synth = xnew.audio.synthesizer({
        oscillator: { type: 'square', envelope: { amount: 36, ADSR: [0, 200, 0.2, 200], }, },
        amp: { envelope: { amount: 0.1, ADSR: [0, 100, 0.2, 200], },},
      });
      synth.press('E3', 200);
    }
  };
}

function Shot(unit, { x, y }) {
  const object = xpixi.nest(new PIXI.Container());
  object.position.set(x, y);
  object.addChild(new PIXI.Graphics().ellipse(0, 0, 4, 24).fill(0x22FFFF));

  unit.on('-update', () => {
    object.y -= 12;

    // finalize when out of screen
    if (object.y < 0) {
      unit.finalize();
      return;
    }

    // detect collision
    for (const enemy of xnew.find(Enemy)) {
      if (enemy.distance(object) < 30) {
        enemy.clash(1);
        unit.finalize();
        return;
      }
    }
  });
}

function Enemy(unit) {
  const object = xpixi.nest(new PIXI.Container());
  object.position.set(Math.random() * xpixi.canvas.width, 0);
  xnew(Sprite, { rects: [[0, 32, 32, 32], [32, 32, 32, 32], [64, 32, 32, 32]] });

  // set velocity and angle of the object
  const v = Math.random() * 2 + 1;
  const a = Math.random() * (Math.PI / 2) + Math.PI / 4;
  const velocity = { x: v * Math.cos(a), y: v * Math.sin(a)};

  unit.on('-update', () => {
    // move in the opposite direction at the edge of the screen
    if (object.x < 10) velocity.x = +Math.abs(velocity.x);
    if (object.x > xpixi.canvas.width - 10) velocity.x = -Math.abs(velocity.x);
    if (object.y < 10) velocity.y = +Math.abs(velocity.y);
    if (object.y > xpixi.canvas.height - 10) velocity.y = -Math.abs(velocity.y);
    object.position.set(object.x + velocity.x, object.y + velocity.y);
  });

  return {
    clash(score) {
      unit.sound(score);
      for (let i = 0; i < 4; i++) {
        unit.emit('+gamescene:append', Crash, { x: object.x, y: object.y, score });
      }
      unit.emit('+gamescene:append', CrashText, { x: object.x, y: object.y, score });
      unit.emit('+scoreup', score);
      unit.finalize();
    },
    distance(target) {
      const dx = target.x - object.x;
      const dy = target.y - object.y;
      return Math.sqrt(dx * dx + dy * dy);
    },
    sound(score) {
      const v = Math.log2(score); // convert svore (1->0, 2->1, 4->2, 8->3, ...)
      const synth = xnew.audio.synthesizer({
        oscillator: { type: 'triangle', },
        amp: { envelope: { amount: 0.1, ADSR: [0, 200, 0.0, 0], }, },
      });
      synth.press(440 * Math.pow(2, (v * 2 + 0) / 12), 200, 0);
      synth.press(440 * Math.pow(2, (v * 2 + 8) / 12), 200, 100);
      synth.press(440 * Math.pow(2, (v * 2 + 12) / 12), 200, 200);
    }
  };
}

function CrashText(unit, { x, y, score }) {
  const object = xpixi.nest(new PIXI.Text(`+ ${score}`, { fontSize: 24, fill: '#FFFF22' }));
  object.position.set(x, y);
  object.anchor.set(0.5);

  xnew.timeout(() => unit.finalize(), 1000); // remove after 1 second
  let count = 0;
  unit.on('-update', () => { // bounding
    object.y = y - 50 * Math.exp(-count / 20) * Math.abs(Math.sin(Math.PI * (count * 10) / 180));
    count++;
  });
}

function Crash(unit, { x, y, score }) {
  const object = xpixi.nest(new PIXI.Container());
  object.position.set(x, y);
  xnew(Sprite, { rects: [[0, 64, 32, 32]] });

  const v = Math.random() * 4 + 1; // 1 ~ 5
  const a = Math.random() * 2 * Math.PI; // 0 ~ 2PI
  const velocity = { x: v * Math.cos(a), y: v * Math.sin(a)};

  xnew.timeout(() => unit.finalize(), 800); // remove after 800ms

  let count = 0;
  unit.on('-update', () => {
    object.x += velocity.x;
    object.y += velocity.y;
    object.rotation = count / 10;
    object.alpha = 1 - count / 100; // fade out
    count++;

    // detect collision
    for (const enemy of xnew.find(Enemy)) {
      if (enemy.distance(object) < 30) {
        enemy.clash(score * 2);
        unit.finalize();
        return;
      }
    }
  });
}

function Sprite(unit, { rects }) {
  const object = xpixi.nest(new PIXI.Container());
  xnew.promise(PIXI.Assets.load('texture.png')).then((texture) => {
    texture.baseTexture.scaleMode = PIXI.SCALE_MODES.NEAREST;
    const textures = rects.map((rect) => new PIXI.Texture({ source: texture, frame: new PIXI.Rectangle(...rect) }));
    const sprite = new PIXI.AnimatedSprite(textures);
    sprite.animationSpeed = 0.1;
    sprite.anchor.set(0.5);
    sprite.scale.set(2);
    sprite.play();
    object.addChild(sprite);
  });
}
