puzzle
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1">
<script type="importmap">
{
"imports": {
"pixi.js": "https://cdnjs.cloudflare.com/ajax/libs/pixi.js/8.6.6/pixi.min.mjs",
"matter-js": "https://cdn.jsdelivr.net/npm/matter-js@0.20.0/+esm",
"@mulsense/xnew": "https://unpkg.com/@mulsense/xnew@2.5.x/dist/xnew.module.js",
"@mulsense/xnew/addons/xpixi": "https://unpkg.com/@mulsense/xnew@2.5.x/dist/addons/xpixi.module.js",
"@mulsense/xnew/addons/xmatter": "https://unpkg.com/@mulsense/xnew@2.5.x/dist/addons/xmatter.module.js"
}
}
</script>
<script type="module" src="./script.js"></script>
</head>
<body style="margin: 0; height: 100vh;">
<div id="main" style="width: 100%; height: 100%;"></div>
</body>
</html>

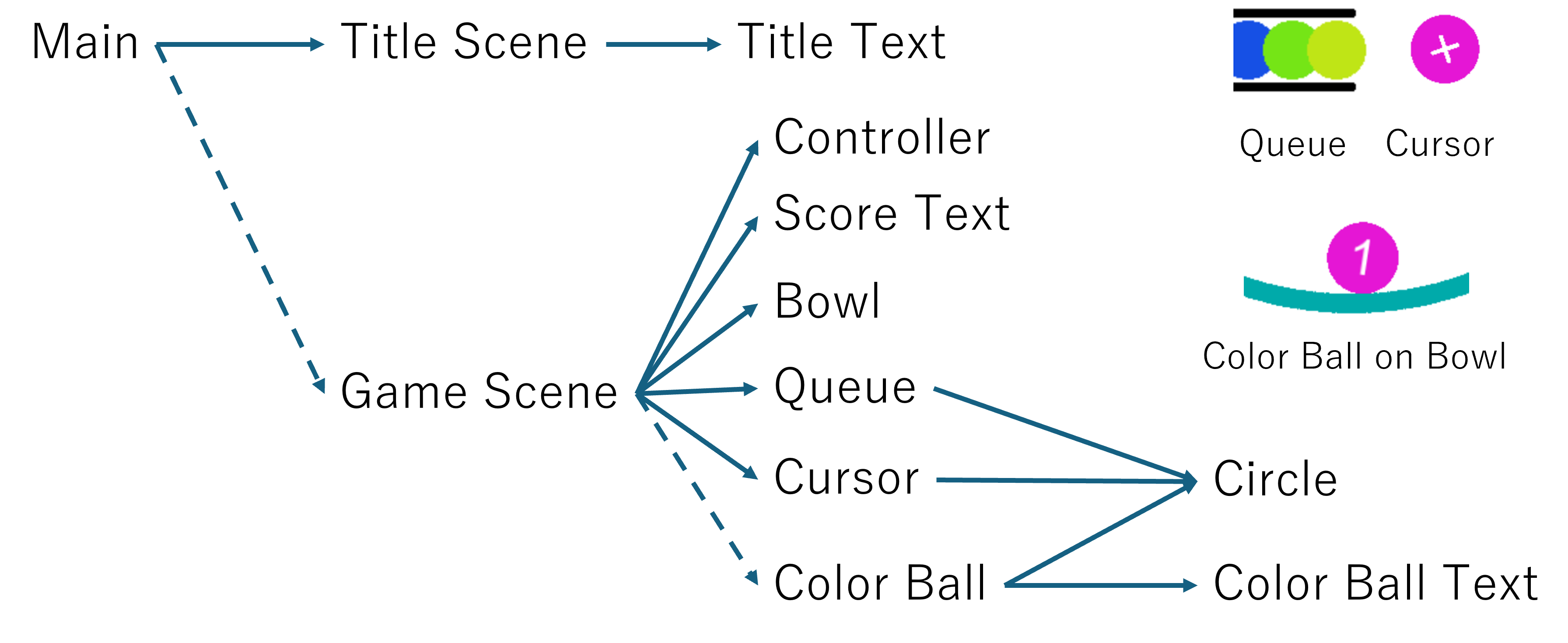

component tree
script.js
import * as PIXI from 'pixi.js';
import Matter from 'matter-js';
import xnew from '@mulsense/xnew';
import xpixi from '@mulsense/xnew/addons/xpixi';
import xmatter from '@mulsense/xnew/addons/xmatter';
const width = 800, height = 600;
xnew('#main', Main);
function Main(self) {
xnew(xnew.Screen, { width, height });
xpixi.initialize();
xnew(Background);
xnew(TitleScene);
self.on('+nextscene', xnew);
}
function Background(self) {
const object = xpixi.nest(new PIXI.Container());
object.addChild(new PIXI.Graphics().rect(0, 0, width, height).fill(0xDDFFFF));
}
function TitleScene(self) {
xnew(TitleText);
xnew(window).on('keydown pointerdown', () => {
xnew.emit('+nextscene', GameScene);
self.finalize();
});
}
function TitleText(self) {
const object = xpixi.nest(new PIXI.Text('touch start', { fontSize: 32, fill: 0x000000 }));
object.position.set(width / 2, height / 2);
object.anchor.set(0.5);
}
function GameScene(self) {
xmatter.initialize();
xnew(Controller);
xnew(ScoreText);
xnew(Bowl);
xnew(Cursor);
xnew(Queue);
xnew(QueueCover);
self.on('+addobject', xnew);
self.on('+gameover', () => {
xnew(GameOverText);
xnew(window).on('keydown pointerdown', () => {
xnew.emit('+nextscene', TitleScene);
self.finalize();
});
});
}
function Controller(self) {
const screen = xnew.find(xnew.Screen)[0];
const pointer = xnew(screen.canvas, xnew.PointerEvent);
pointer.on('-pointermove -pointerdown', ({ position }) => {
xnew.emit('+move', { x: position.x * screen.scale.x });
});
pointer.on('-pointerdown', () => xnew.emit('+action'));
}
function ScoreText(self) {
const object = xpixi.nest(new PIXI.Text('score 0', { fontSize: 32, fill: 0x000000 }));
object.position.set(width - 10, 10);
object.anchor.set(1, 0);
let sum = 0;
self.on('+scoreup', (score) => object.text = `score ${sum += score}`);
}
function Bowl(self) {
for (let angle = 0; angle <= 180; angle++) {
const x = 400 + Math.cos(angle * Math.PI / 180) * 280;
const y = 310 + Math.sin(angle * Math.PI / 180) * 280;
xnew(Circle, { x, y, r: 8, color: 0x00AAAA }, { isStatic: true });
}
}
function Queue(self) {
const object = xpixi.nest(new PIXI.Container());
const balls = [...Array(4)].map(() => Math.random() * Math.PI * 2);
const circle1 = xnew(Circle, { x: 1 * 30, y: 0, r: 20, color: hueToCol(balls[3]) }, { isStatic: true });
const circle2 = xnew(Circle, { x: 2 * 30, y: 0, r: 20, color: hueToCol(balls[2]) }, { isStatic: true });
const circle3 = xnew(Circle, { x: 3 * 30, y: 0, r: 20, color: hueToCol(balls[1]) }, { isStatic: true });
xnew.emit('+reloadcomplete', balls[0]);
object.position.set(-20, 40);
self.on('+reload', () => {
balls.shift();
balls.push(Math.random() * Math.PI * 2);
circle1.color = hueToCol(balls[3]);
circle2.color = hueToCol(balls[2]);
circle3.color = hueToCol(balls[1]);
xnew.transition(({ progress }) => {
object.x = 30 * progress - 50;
if (progress === 1.0) {
xnew.emit('+reloadcomplete', balls[0]);
}
}, 500);
});
}
function QueueCover(self) {
const object = xpixi.nest(new PIXI.Container());
object.addChild(new PIXI.Graphics().moveTo(0, -25).lineTo(80, -25).stroke({ color: 0x000000, width: 8 }));
object.addChild(new PIXI.Graphics().moveTo(0, +25).lineTo(80, +25).stroke({ color: 0x000000, width: 8 }));
object.position.set(0, 40);
}
function Cursor(self) {
const object = xpixi.nest(new PIXI.Container());
object.position.set(400, 40);
const circle = new PIXI.Graphics();
object.addChild(circle);
object.addChild(new PIXI.Graphics().moveTo(-12, 0).lineTo(12, 0).stroke({ color: 0xFFFFFF, width: 4 }));
object.addChild(new PIXI.Graphics().moveTo(0, -12).lineTo(0, 12).stroke({ color: 0xFFFFFF, width: 4 }));
self.on('+move', ({ x }) => object.x = Math.max(Math.min(x, width / 2 + 240), width / 2 - 240));
let next = null;
self.on('+reloadcomplete', (hue) => {
next = hue;
circle.circle(0, 0, 32).fill(hueToCol(next));
});
self.on('+action', () => {
if (next !== null) {
circle.clear();
xnew.emit('+addobject', ColorBall, { x: object.x, y: object.y, hue: next, score: 1 });
xnew.emit('+reload');
next = null;
}
});
return {
update() {
object.rotation += 0.02;
}
}
}
function ColorBall(self, { x, y, hue = 0, score = 1 }) {
const r = 28 + 3 * score;
xnew.extend(Circle, { x, y, r, color: hueToCol(hue) });
xnew.emit('+scoreup', score);
xnew(ColorBallText, { hue, score });
return {
r, hue, score, isMearged: false,
update() {
if (self.object.y > height - 10) {
xnew.emit('+gameover');
}
for (const target of xnew.find(ColorBall)) {
if (self.mergeCheck(target)) {
const score = self.score + target.score;
const hue = meanHue(self.hue, target.hue);
const x = (self.object.x * self.score + target.object.x * target.score) / score;
const y = (self.object.y * self.score + target.object.y * target.score) / score;
xnew.timer(() => {
xnew.emit('+addobject', ColorBall, { x, y, hue, score });
self.finalize();
target.finalize();
});
self.isMearged = true;
target.isMearged = true;
}
}
},
mergeCheck(target) {
if (self === target || self.score !== target.score) return false;
if (self.isMearged === true || target.isMearged === true) return false;
if (diffHue(self.hue, target.hue) > Math.PI * 0.25) return false;
const dx = target.object.x - self.object.x;
const dy = target.object.y - self.object.y;
const dist = Math.sqrt(dx * dx + dy * dy);
if (dist > self.r + target.r + 0.01) return false;
return true;
}
}
}
function ColorBallText(self, { score }) {
const object = xpixi.nest(new PIXI.Text(score, { fontSize: 34 + 6 * score, fill: 0xffffff }));
object.anchor.set(0.5);
}
function GameOverText(self) {
const object = xpixi.nest(new PIXI.Text('game over', { fontSize: 32, fill: 0x000000 }));
object.position.set(width / 2, height / 2);
object.anchor.set(0.5);
}
function Circle(self, { x, y, r, color = 0xFFFFFF }, options = {}) {
const object = xpixi.nest(new PIXI.Container());
const pyshics = xmatter.nest(Matter.Bodies.circle(x, y, r, options));
const graphics = new PIXI.Graphics().circle(0, 0, r).fill(color);
object.position.set(x, y);
object.addChild(graphics);
return {
object,
update() {
object.rotation = pyshics.angle;
object.position.set(pyshics.position.x, pyshics.position.y);
},
set color(color) {
graphics.clear().circle(0, 0, r).fill(color);
},
};
}
// --------------------------------------------------
// color functions
// --------------------------------------------------
function hueToCol(hue) {
const [h, s, v] = [hue, 0.9, 0.9];
const r = h * 180.0 / Math.PI;
const i = Math.floor(r / 60);
const f = r / 60 - i;
const x = Math.floor(255 * v);
const p = Math.floor(255 * v * (1 - s));
const q = Math.floor(255 * v * (1 - f * s));
const t = Math.floor(255 * v * (1 - (1 - f) * s));
let col = [0, 0, 0];
switch (i % 6) {
case 0: col = [x, t, p]; break;
case 1: col = [q, x, p]; break;
case 2: col = [p, x, t]; break;
case 3: col = [p, q, x]; break;
case 4: col = [t, p, x]; break;
case 5: col = [x, p, q]; break;
}
return 256 * 256 * col[0] + 256 * col[1] + col[2];
}
function meanHue(a, b) {
const mean = (a + b) / 2;
return Math.abs(a - b) < Math.PI ? mean : (mean < Math.PI ? mean + Math.PI : mean - Math.PI);
}
function diffHue(a, b) {
const diff = Math.abs(a - b);
return diff < Math.PI ? diff : Math.PI * 2 - diff;
}
